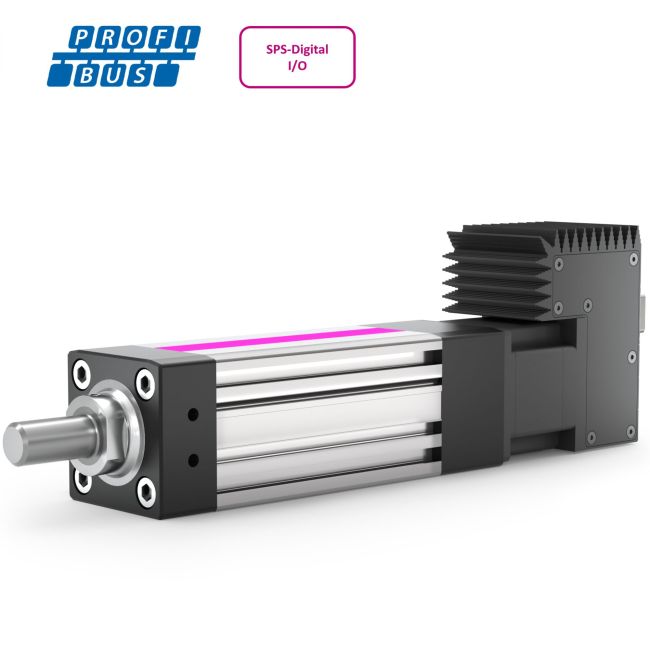

Colibri LE23

Piston rod cylinder up to 1000N with compact stepper motor

Everything complete - axle - motor - control unit

Sliding thread with plastic nut

Motor size: Nema 23

Feed forces: up to 1000 N

Speeds: up to 340 mm/s

Interfaces: Profibus, SPS-I/O

Stroke: 25 - 300 mm

SKU

VLE230

Lieferzeit: 2-3 weeks

Gehäusetyp

Encoder

Motorgröße

Steuerungsversion

Spindelsteigung

Hub

Motoranordnung

MM1

€1,081.71 €909.00

Qty:

Electric linear lifting unit without guide and with integrated Colibri stepper motor drive

Ideal for format adjustment tasks, based on a sliding spindle system with
plastic nut
Spindle axis with piston rod with permanently attached stepper motor and integrated stepper motor control
Spindle pitches: 3 / 6.35 / 12.7 / 25.4
Encoder for monitoring the position integrated as standard
Insensitive to soiling due to sealed housing
Selectable control variants PLC I/O, Profibus
pre-configurable via PC.
