Assi di motori passo-passo e servomotori
CILINDRO CON STELO
CON UNITÀ DI CONTROLLO INTEGRATA

Filtri
Set Descending Direction

6 Items

per page
  1. Unità di guida elettrica con motore passo-passo e controllo integrato
    Sistema completo: asse, motore e controllo

    Dimensione del motore:Nema 23
    Forze di avanzamento fino a 600 N
    Velocità fino a400 mm/s
    Interfacce:Profinet, PLC-I/O
    Corsa:50 - 300 mm
    Profinet Ethernet/ip Ethercat Canopen Sps-i/o
    Learn More
    1.067,00 €
    Exkl. 19% Steuern
    1.269,73 €
    Inkl. 19% Steuern
    Mostra prezzo

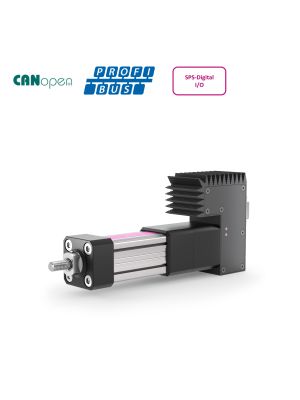

  2. Cilindri a stelo fino a 1000 N con motore passo-passo compatto
    Tutto completo: asse, motore, sistema di controllo
    Filettatura scorrevole con dado in plastica
    Dimensioni del motore: Nema 23
    Forze di avanzamento: fino a1000 N
    Velocità: fino a 340 mm/s
    Interfacce: Profibus, PLC-I/O
    Corsa: 25 - 300 mm

    Sps-i/o Profibus
    Learn More
    696,00 €
    Exkl. 19% Steuern
    828,24 €
    Inkl. 19% Steuern
    Mostra prezzo
  3. Cilindri a stelo fino a 1000 N con motore passo-passo compatto
    Tutto completo: asse, motore, controllo

    Ideale per operazioni di regolazione
    Dimensioni del motore: Nema 23
    Forze di avanzamento: fino a 1000 N
    Velocità: fino a 600 mm/s
    Interfacce: Profinet, EtherCAT, EtherNet/IP, CAN-Open
    Corsa: 25 - 300 mm

    Profinet Ethernet/ip Ethercat Canopen
    Learn More
    850,00 €
    Exkl. 19% Steuern
    1.011,50 €
    Inkl. 19% Steuern
    Mostra prezzo
  4. Cilindro elettrico compatto Colibri L23SSC con azionamento passo-passo Colibri 4.0 integrato.

    Unità completa: asse, motore e controller.

    Taglia motore: NEMA 23; forza di avanzamento: fino a 2000 N; velocità: fino a 250 mm/s.

    Interfacce: PROFINET, EtherNet/IP o CANopen; corsa: 30–200 mm.

    Profinet Ethernet/ip Canopen
    Learn More
    1.371,00 €
    Exkl. 19% Steuern
    1.631,49 €
    Inkl. 19% Steuern
    Mostra prezzo
  5. Cilindro elettrico L-SSC con interfaccia meccanica ISO 15552, fornito senza motore.

    Flangia per motori NEMA 23 o NEMA 24.

    Vite a ricircolo di sfere o vite trapezoidale; forza di avanzamento: fino a 2500 N; corsa: 30–200 mm.

    Adattamento della flangia per motori del cliente disponibile su richiesta.

    Learn More
    761,58 €
    Exkl. 19% Steuern
    906,28 €
    Inkl. 19% Steuern
    Mostra prezzo
  6. Cilindro a stelo con servomotore e regolatore integrato
    Sistema completo: asse, motore e regolatore

    Forze di avanzamento da1700 N
    Velocità fino a600 mm/s
    Ampia gamma diaccessori ISO
    Interfacce:Profinet, Ethercat, Profibus, CAN-Open, PLC-I/O
    Corsa100 - 1500 mm
    Alimentazione del motore 24 –60 V DC
    Profibus Canopen Profinet
    Learn More
    1.750,00 €
    Exkl. 19% Steuern
    2.082,50 €
    Inkl. 19% Steuern
    Mostra prezzo
Filtri
Set Descending Direction

6 Items

per page

Häufig gestellte Fragen zu elektrischen Linearachsen

Was ist der Unterschied zwischen Zahnriemen- und Spindelachsen?

Zahnriemenachsen sind ideal für lange Hübe, hohe Geschwindigkeit und dynamische Bewegungen. Spindelachsen bieten höhere Präzision und sind besser für kraftbetonte Positionierungen geeignet.

Wann sollte ich eine kolbenstangenlose Achse einsetzen?

Kolbenstangenlose Achsen sparen Platz und eignen sich besonders für kompakte Maschinen oder Portalsysteme, da sie keine Einfahrlänge benötigen.

Gibt es elektrische Linearachsen mit integrierter Steuerung?

Ja, unsere Colibri-Modelle integrieren Motor und Steuerung direkt in der Achse – ideal für einfache Inbetriebnahme und kompakte Bauweise.

Welche Schnittstellen sind verfügbar?

Unsere Achsen unterstützen SPS-I/O, CANopen, Profinet und Profibus – weitere Varianten sind auf Anfrage möglich.

Kann ich auch komplette Mehrachssysteme (XYZ) erhalten?

Ja, wir liefern anschlussfertige XYZ-Systeme mit optimal abgestimmten Achskombinationen und Steuerungen – individuell angepasst.

Sind die elektrischen Linearachsen wartungsfrei?

Unsere Linearmodule sind wartungsarm. Zahnriemen- und Gleitspindelachsen sind nahezu wartungsfrei, Kugelgewindetriebe verfügen über Nachschmieroptionen.
